argocd-secret via extenalsecret¶

Intro¶

The argocd-secret kubernetes secret stores some information self managed by argocd like:

admin.password
admin.passwordMtime
server.secretkey
tls.crt
tls.key

It also supports other settings related with the webhooks token

webhook.github.secret:
webhook.gitlab.secret:
webhook.bitbucket.uuid:
webhook.bitbucketserver.secret:
webhook.gogs.secret:

and also additional users/accounts related info

We can get that info with

kubectl get secret argocd-secret -o yaml --show-managed-fields

The problem¶

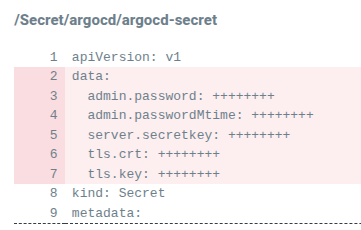

The problem with this is that argocd is the owner of those fields. If we want to patch this content, mixing that selfmanaged fields with other controllers, like external-secrets-operator, we can get some unexpected results, like the deletion of the managed fields

alt text

If the deletion occurs, those fields can be recreated restarting the argocd-server server

kubectl rollout restart deployment argocd-server -n argocd

Also,the annotation argocd.argoproj.io/tracking-id can be change all the time between:

myapp:external-secrets.io/ExternalSecret:argocd/argocd-secret
myapp:/Secret:argocd/argocd-secret

Making the owner of that field different at every change

argocd-controller
externalsecrets.external-secrets.io/argocd-secret

Solution 1: Via ExternalSecret¶

argocd.argoproj.io/compare-options: IgnoreExtraneous

Because the owner changes all the time, this ignores that frequent out of sync only.

argocd.argoproj.io/sync-options: Prune=false
creationPolicy: Merge

The external secrets operator does not create the secret. It only merges the values with an existing secret

deletionPolicy: Merge

If the secret is deleted from the provider, external secrets operator simply removes the keys from the secret, not the secret itself

apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: argocd-secret
spec:
  data:
    - remoteRef:
        key: secret/argocd-webhook-token
      secretKey: webhook.github.secret
  target:
    creationPolicy: Merge
    deletionPolicy: Merge
    template:
      metadata:
        annotations:
          argocd.argoproj.io/sync-options: Prune=false
          argocd.argoproj.io/compare-options: IgnoreExtraneous
...

Solution 2: Move our setting to another (external)secret¶

Argocd permits to put the value of a configmap or secret in our own custom secret. This permits to let external secrets operator to manage that external secret without touch the original one.

Create our custom secret

First we have to create an (external)secret with our value

It must have the app.kubernetes.io/part-of: argocd label

apiVersion: external-secrets.io/v1beta1
kind: ExternalSecret
metadata:
  name: argocd-custom-secret
spec:
  data:
    - remoteRef:
        key: secret/argocd-webhook-token
      secretKey: webhook.github.secret
  target:
    template:
      metadata:
        labels:
          app.kubernetes.io/part-of: argocd
...

Link the original place with the custom secret

Then we go to the original place where that value is configured an make a link to our new secret with the following format:

KEY: $CUSTOM-SECRET-NAME:KEY-IN-CUSTOM-SECRET

For example

apiVersion: v1
kind: Secret
metadata:
  name: argocd-secret
type: Opaque
stringData:
webhook.github.secret: $argocd-custom-secret:webhook.github.secret

Restart workload

Depending of what workload and setting is, we can probably need to restart the workload. For example

kubectl rollout restart deployment argocd-server -n argocd

Notes¶

This solution puts $argocd-custom-secret:webhook.github.secret as the value in the beginning. The restart changes it with the value in the custom secret.
If we are doing the link with a kustomize patch and it is not applied, we must probably delete the secret first. This removes the self managed data including admin password and certificates, and the argocd needs to be restarted to recreate them
