Gitlab webhook

Now we will argocd make a refresh when a push event is received in the gitlab repository. This is very useful when increasing or disabling timeout.reconciliation

Gitlab side

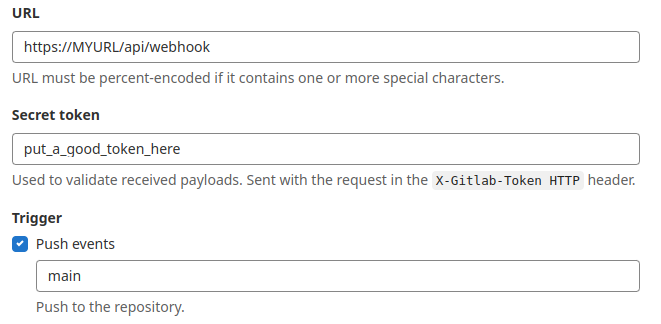

Go to your repository in Settings - Webhooks and create a webhook with this options.

URL: https://YOUR_ARGOCD_INSTANCE_URL/api/webhook  (we need it exposed via ingress)
Secret Token: use a password generator to define a token
Trigger. Choose push events and configure the branch where your argocd manifests are located
SSL verification: If your argocd instace has a known certificate, let it enabled

alt text

alt text

Argocd side (custom secret)

By defaut argocd-secret is used, but we will use a custom secret to store this setting. If you don't want to create a new secret, it is posibble to directly configure the value of the token in the webhook.gitlab.secret key of the argocd-secret Secret. I propose this way because of some problems merging an externalsecret with the existing argocd-secret Secret

  • Configure the argocd-secret to tell the webhook.gitlab.secret will be in another secret
apiVersion: v1
stringData:
  webhook.gitlab.secret: $argocd-custom-secrets:webhook.gitlab.secret
kind: Secret
metadata:
  name: argocd-secret
type: Opaque

And the create a secret:

  • called argocd-custom-secrets
  • label it with app.kubernetes.io/part-of: argocd
  • include the webhook.gitlab.secret key with the token

Now will link the webhook.gitlab.secret with the recently created secret. This is done setting this line in the argocd-secret Secret

Finally test the hook in the the place where we created the webhook instance with a push test

alt text

It must have connectivity between gitlab and argocd

Same for the Applicationset controller

We can do the same for the applicationsets, specially relevant if we:

  • have increased the default 3m value of applicationsetcontroller.requeue.after setting in the argocd-cmd-params-cm ConfigMap
  • make it at Applicationset level with requeueAfterSeconds

Steps

  • Create a new ingress that exposes the webhook port of the argocd-applicationset-controller pod
  • Create a new webhook in gitlab the same way, now with the url https://THE_NEW_INGRESS/api/webhook
  • Git Webhook Configuration

https://argo-cd.readthedocs.io/en/stable/operator-manual/webhook/

  • Git Generator

https://argo-cd.readthedocs.io/en/stable/operator-manual/applicationset/Generators-Git/
